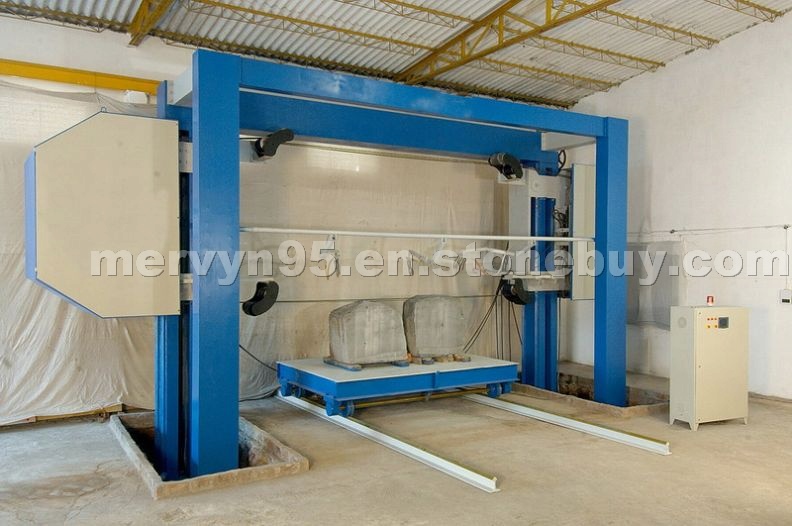

wire saw machine

• Place of Origin:

   El Salvador

• Type:

  Quarrying and Earthmoving Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1435850

• Place of Origin:

  China
• Maximum Block Size:L 3650mm x B 2000mm x H 2300mm
  Slab Thickness : 20mm and 30mm
  Post Height (Fabricated) :5mtr. (4695mm)
  Distance Between Two Main Post :8.50mtr. (8465mm)
  Distance Between Post and Stiffener:2mtr.(2000mm)
  Vertical Slide (Fabricated) :2mtr.(2000mm)
  Aluminum Pulley with Rubber Ring having Size and Pcs. :600mm dia x 25pcs.
  Manual Operation to Adjust Distance Between Pulleys:20mm and 30mm
  Trolley size (40ton Capacity) :4mtr x 2.5mtr (4000mm x 2440mm)
  Rail Track (90pound) :20ft.
  Applicable Rubber Coated Wire Saw for Granite (9mm dia.) :21mtr. (40pcs/mtr.)
  Wire Speed (Variable) :22mtr-30mtr/sec.
  Wire Cutting Rate:20cm/hr.
  Wire Tension :250kg/one side
  Water Consumption:75 lt/min.
  Main AC- Electric Motor :25HP /variable speed/max.1500rpm
  Gear Box With AC Electric Motor for up & down moment:5 HP with AC Drive
  Gear Box with AC Electric Motor for Trolley moment:5 HP with AC Drive
  Electric Penal 25HP / PLC Controls with HMI screen.:130 Amps. Input
  Machine Weight:15000kg.



  Other than these data
  Multi wire machine it the next generation machine
  Our machine is having IP address with camera, hence if any customer is facing any problem with programming or customer want to change programme through us we can change or operate machine from our office by seeing machine through internet camera.
  Machine is having all the parts rotating so it has very less maintenance problem.
  Only rubber ring replacement is there after certain intervals.
  Our machine can cut the block as per its harness in auto mode where machine will use its best efficiency to cut at its maximum speed.
  Compare to gang saw there are many benefits i.e. space, cost of cutting, production, cutting tolerance, low maintenance, less labour requirement, cost of electricity and main thing is ease to operate the machine.
