Stone Machine

• Place of Origin:

   El Salvador

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1427180

• Place of Origin:

  China

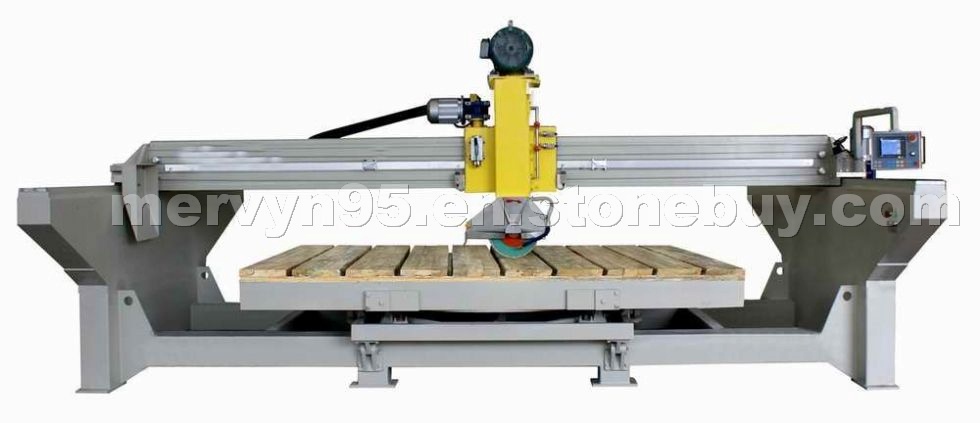

• Bridge Saw used for granite countertop fabrication or other stone cutting. B2B002 Infrared BridgeSaw is the most versatile cutting machine you can put in your shop for the money. It is controlled by microcomputer for fully automatic operations, and has a liquid crystal touch screen for easy operator interface. Comes with a wireless remote control to allow operator to stand next to work piece during setup. The tilting turn table can tilt at 85 degrees to load slabs and rotates 360 degrees automaticallywith 5 stopping points. Optional 0-360 locking system available. This machine frame is constructed from cast iron for the highest quality and best stability of any machine of its sizeon the market. The main beam has been machined to perfect tolerances to give it extremely straight cuts, while absorbing any minor vibrations during normal use. The saw head has a hydraulic locking unit to insure precise cut alignment and the gears run in a bath of oil for continuous lubrication. One piece mono frame.

  Computer Controlled
  Operation Accepts blade diameters of 350-600mm
  Working Table weight of 1000 KG
  Elevation range up to 500 mm
  Table tilts to 85 degrees
  Table rotates 360 degrees
  11 KW motor
  Water consumption 25 cm/h
  15HP Motor
  Table Dimensions 3200mm L x 2000mm H
  Over all Dimensions 5600mm L x 5856mm W x2950mmH
  Max Cutting dimensions 3500mm L x 2000mm W x 350mm H
